WS2812B 12V LED Strip Light WS2815 Addressable RGB LED Light Strip 12V WS2813 Programmable Dream Color Digital LED Pixel 16.4ft 300 LEDs Waterproof IP65 for Decor Lighting Project
$48.99
- Brand: ALITOVE
- Product Code: WS2815-300WH-IP65
- Availability: In Stock
- Ex Tax: $48.99
Product Description
Parameter
Light source: 5050 RGB LED
LED Qty: 60pcs per meter
Wave length (NM): R,620~625nm ; G,515~525nm; B,465~475nm
The gray level: 256
Color: full color (24-bit )
View angle:120°
Voltage: DC 12V
Power: 14.4W/M, 72W/Roll
Waterproof: Silicone Tube Waterproof IP67
FPCB board color: White
Dimension: 5000*10*4mm
Package: 16.4ft/roll
Life span:≥50000hrs
Working environment: -40℃to +80℃
Red wire: 12V+ / Black Wire: GDN / Yellow wire: Data / Green wire: Backup Data

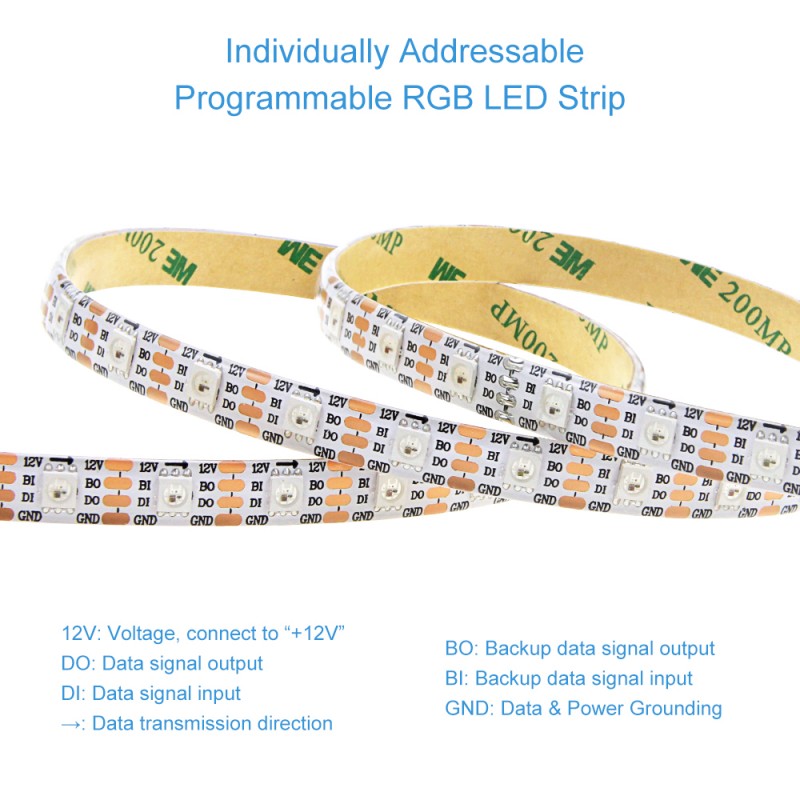

Pin Function
12V: Power Voltage, connect to “+12V”
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: Backup control data signal input
GND: Data &Power Grounding

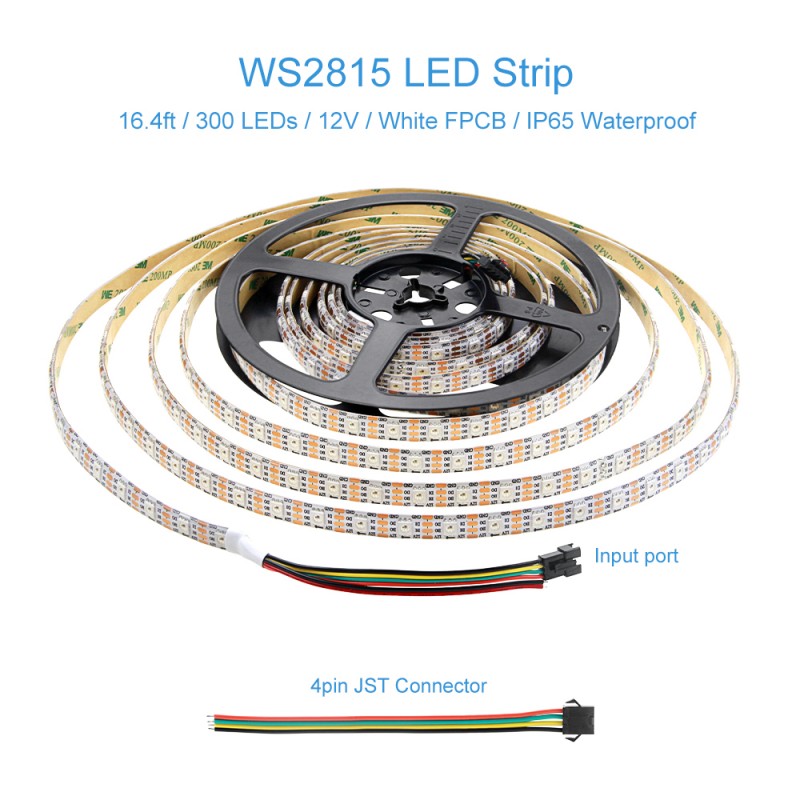

Package
1x 16.4ft 300 pixels AL2815 led strip (Power supply and controller are not included)
1x Female 4PIN JST connector
