$31.99

  • Brand: ALITOVE
  • Product Code: WS2815-150WH-IP65
  • Availability: In Stock
  • Ex Tax: $31.99

Product Description

Parameter:

  • Model: WS2815WH150EWP
  • Light source: 5050 RGB LED
  • LED Qty: 30pcs per meter
  • Wave length (NM): R,620~625nm ; G,515~525nm; B,465~475nm
  • The gray level: 256
  • Color: full color (24-bit )
  • View angle:120°
  • Voltage: DC 12V (Please NEVER use higher than 12V or you will destroy the entire strip.)
  • Power: 7.2 W/M

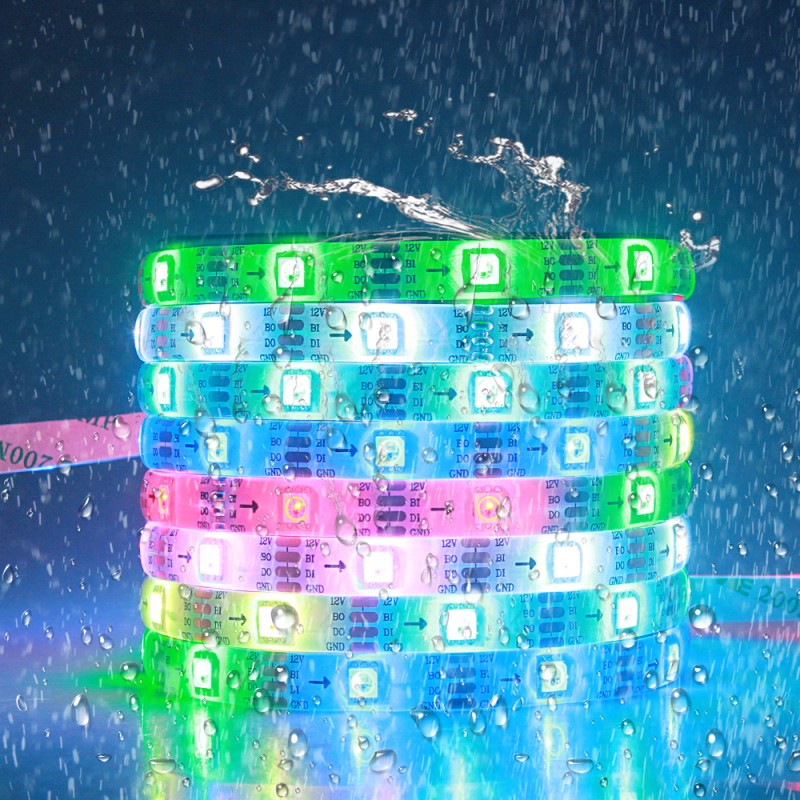

  • Waterproof: Waterproof IP65
  • Dimension: 5000*10*4mm
  • Package: 16.4ft/roll
  • Life span:≥50000hrs
  • FPCB color: White
  • Working environment: -40℃to +80℃

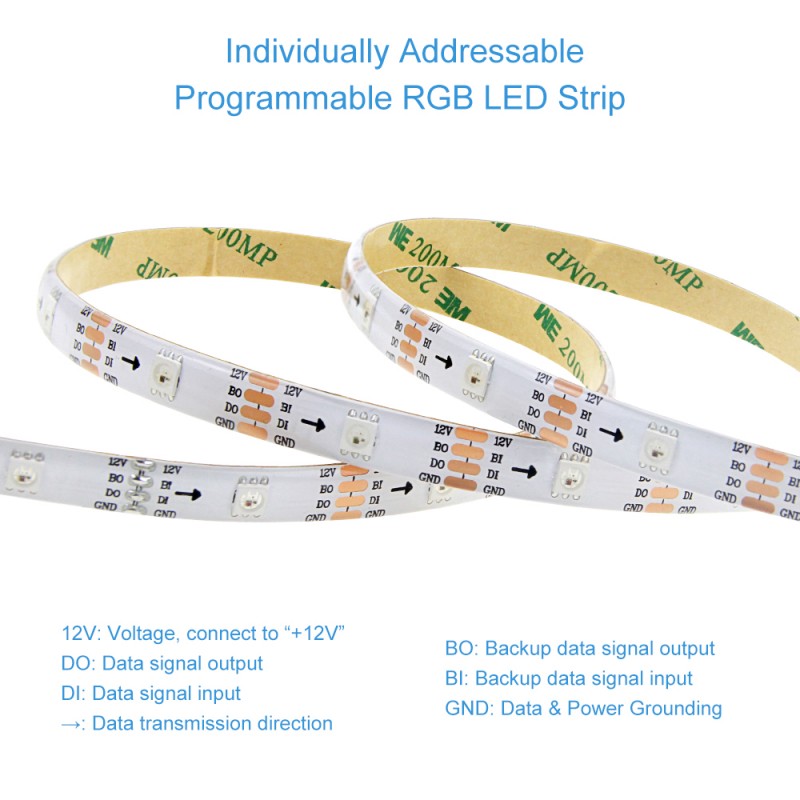

  • Red wire: 12V+ / Black Wire: GDN / Yellow wire: Data / Green wire: Backup Data

Package:

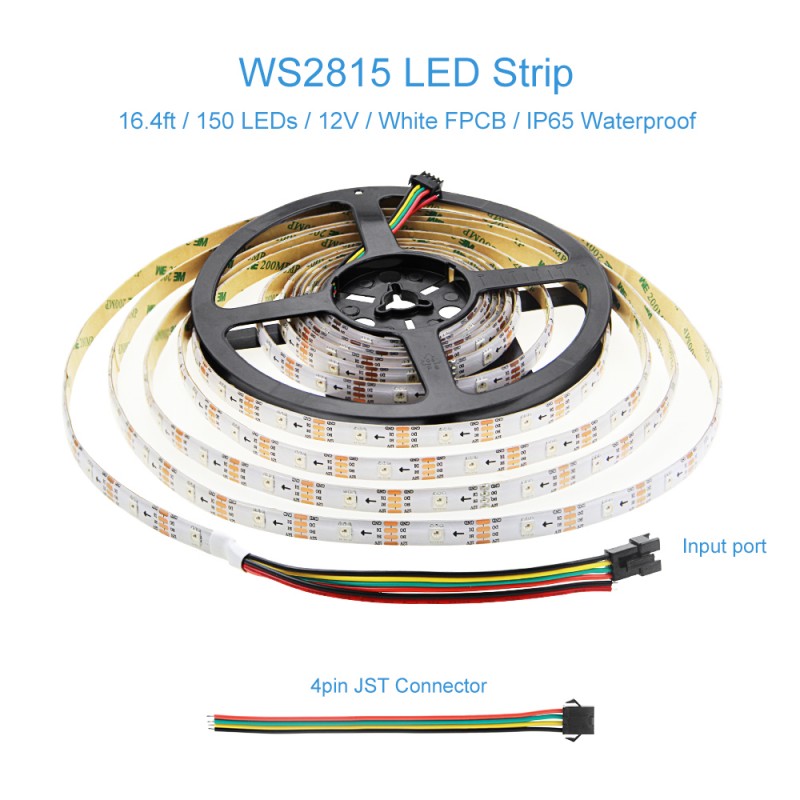

  • 1x 16.4ft 150 pixels WS2815 led strip (Power supply and controller are not included)
  • 1x 4PIN JST connector

waterproof IP65

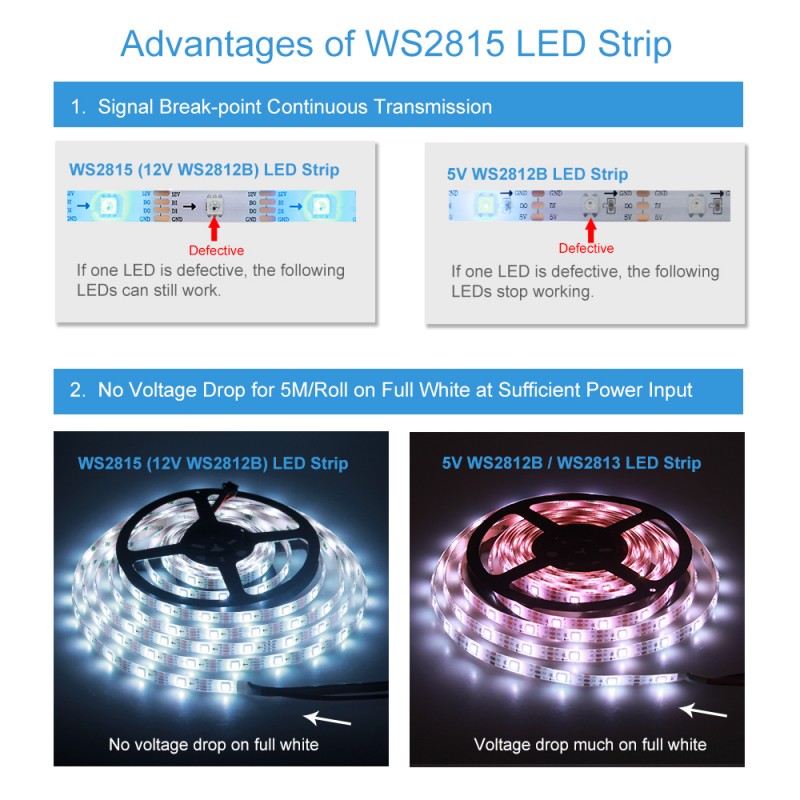

What are the advantages of WS2815 LED Strip?

WS2815 LED strip is 12V WS2812B/WS2813, upgraded version of 5V WS2812B/WS2813. It is also individually addressable LED like 5V WS2812B/WS2813, but it has two extra advantages.

  1. 【12V DC input】For 5M LED strip, even if all the LEDs are turned on full white, WS2815 LED strip has no voltage drop. You don't need to inject power as frequently as 5V version.
  2. 【Dual-signal wires】 Designed with one data wire and one backup data wire. Signal break-point continuous transmission. When one LED burns out, the other LEDs will keep working.

So it is very suitable for large lighting project such as city skyline lighting, building outline decoration, HD advertising screen, shopping malls decoration etc. It will greatly reduce the maintenance cost of your projects.
